Processor system
|
CPU
|
Support LGA1150 interface Intel 4th i3-i5-i7 CPU
|
CPU package
|
PGA
|
chipset
|
Intel® H81 or H87 Express Chipset
|
Bioses
|
EFI Bioses
|
RAM
|
Technology Architecture
|
Single channel DDR3L 1066/1333/1600MHz
|
capacity
|
Onboard 2GB/4GB DDR3L memory
|
Slot
|
Add 1 DDR3 SODIMM 204 Socket memory slot, up to 12G
|
video
|
Graphics controller
|
Intel HD Graphics 4000 graphics card model related to CPU
|
HDMI
|
HDMI supports maximum resolution 4096×2304@24HZ
|

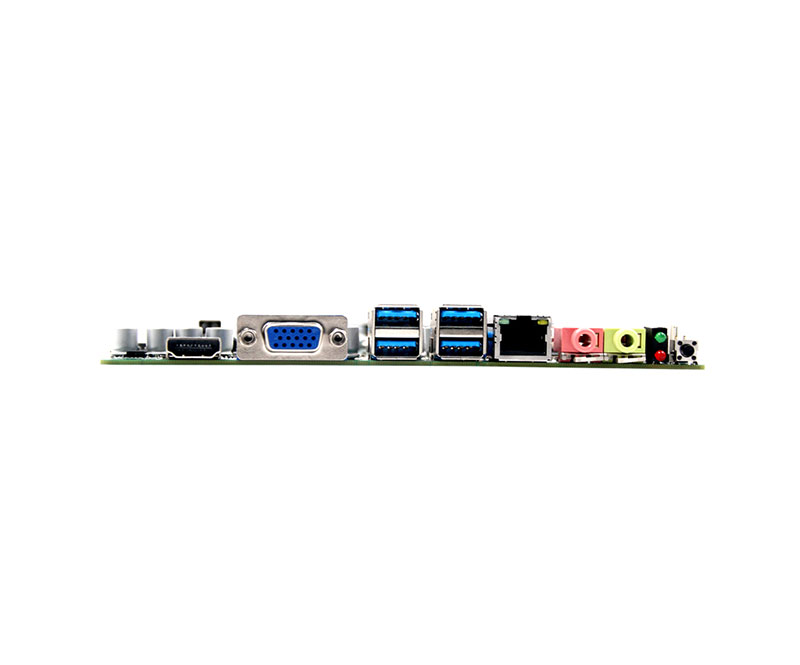

I/O backplane
|
port
|
1*HDMI,,1*LAN.4*USB3.0, 1*MIC-OUT/LINE-OUT, 1*DC, 1* power button
|
The internet
|
Controller
|
1 RTL8111E-V Gigabit LAN, RJ45 interface
|
Audio
|
Controller
|
Raychem HD ALC662 audio decoding (audio output + microphones)
|
Super I/O
|
Controller
|
NCT6106D
|
Hardware monitoring
|
Watchdog timer
|
0-255 seconds, providing a watchdog routine
|
Cooler
|
Standard H81 fan, optional.
|
Input/output interface
|
USB
|
4*USB3.0 compatible with USB2.0 / 1.1, 2*USB2.0, maximum support +5V/1A
|
Serial port
|
1 RS232
|
PS/2
|
no
|
Expansion bus
|
Mini-PCle
|
2 Mini-PCIe slots for PCIe and USB devices
|
storage
|
SATA
|
1 standard SATAIII interface, maximum transfer rate 6Gb/s
|
M-SATA
|
1 Mini-PCIe M-SATA Scoket with SANDISK protocol, maximum transfer rate 3gb/s
|
power supply
|
Power type
|
Single input DC power supply, DC12V-19V, +/-5%, support AT/ATX power on
|
Power consumption
|
60W
|
working environment
|
Operating temperature
|
-20℃ ~ +60℃
|
storage temperature
|
-40℃ ~ +85℃
|
Working humidity
|
0% ~ 90% relative humidity, no condensation
|
Storage humidity
|
0% ~ 90% relative humidity, no condensation
|

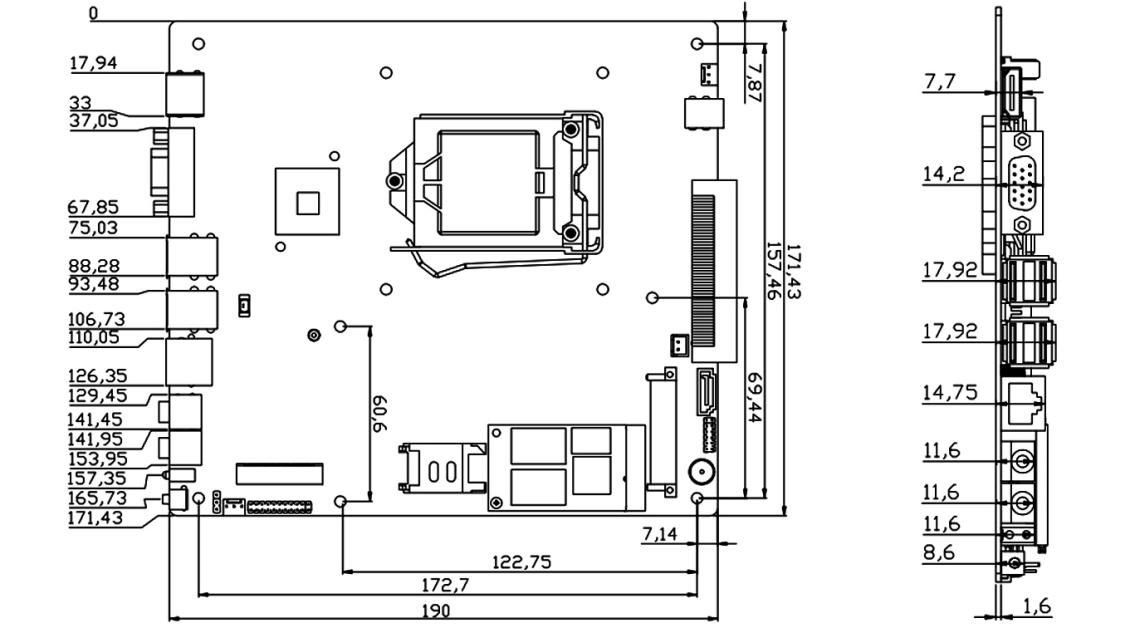

physical dimension
|
size
|
190 x 171 mm
|
weight
|
0.5KG
|
Certification
|
|
CE,ROHS,FCC
|
