model

Q-BOX(D2550)

size

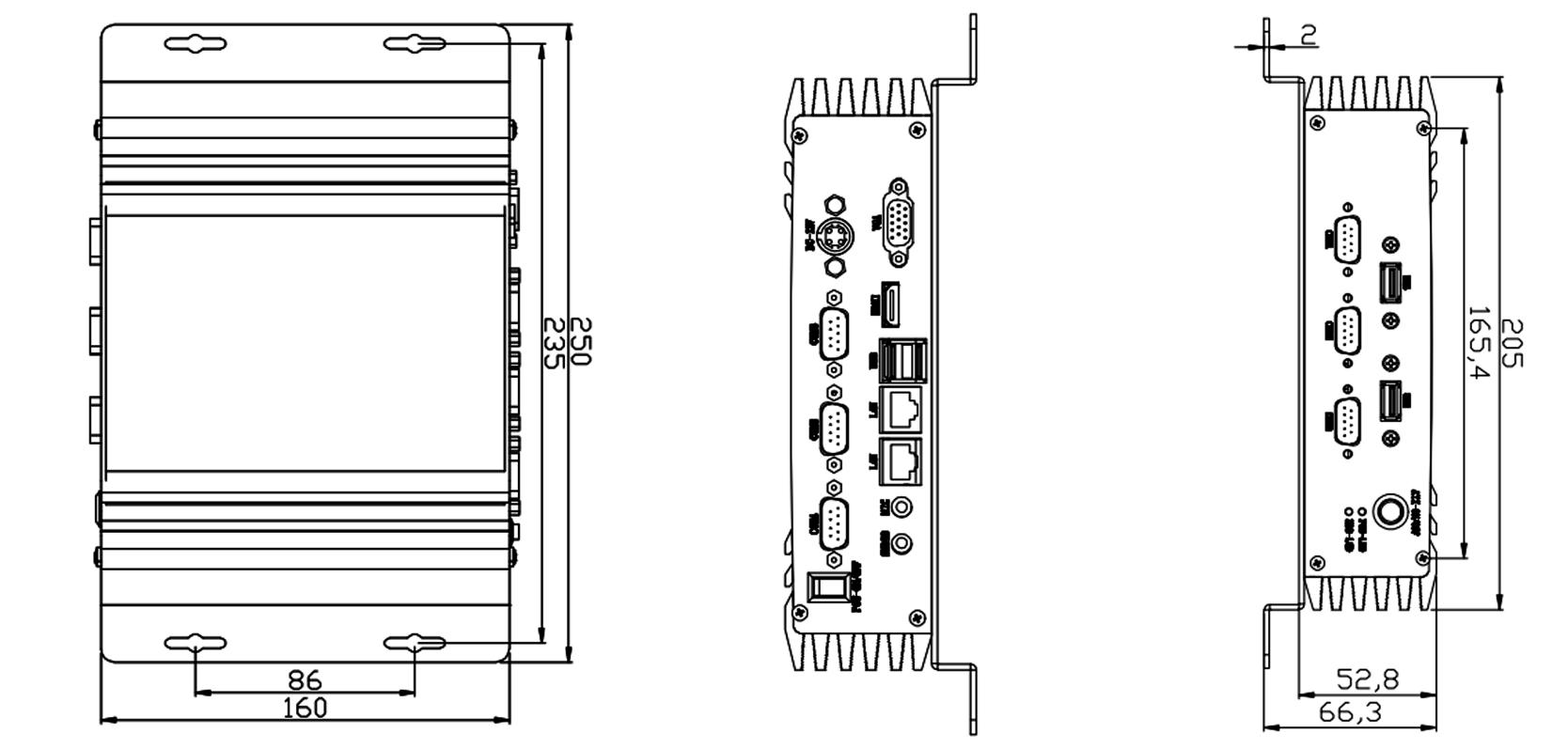

205*160*66mm

processor

Intel Atom Processor N2600（1.6GHz）/ N2800（1.86GHz）/D2550(1.86GHz)

chipset

NM10

RAM

Onboard 2GB/4GB DDR3 memory

Expansion slot

1*Mini PCI-E slot

Network card

2*Realetk RTL8111EL Gigabit LAN

Audio

Realetk ALC662 6-channel HD audio core provides 1*Mic_in, 1*Line_out

Storage device

1*2.5′′ SATA hard drive, 1*M-SATA SSD interface

colour

black

Panel interface

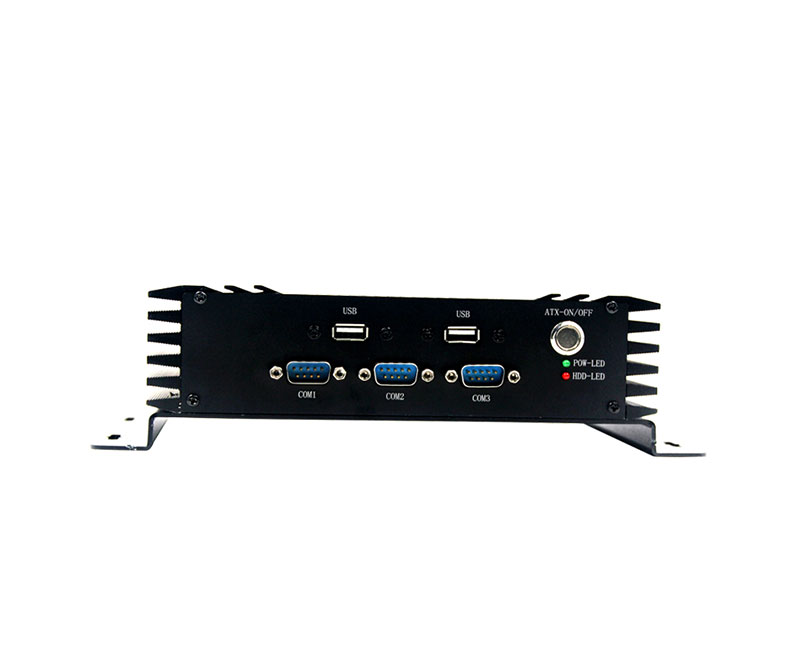

2*USB、3*COM

Backplane interface

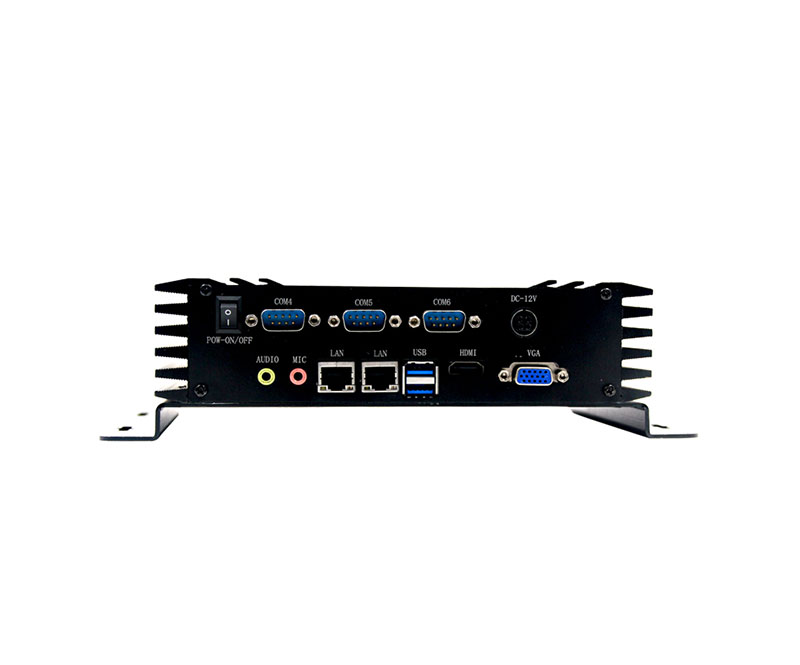

1*VGA、1*HDMI、2*USB、2*LAN、1*Mic_in、1*Line_out、3*COM、1*DC_IN

Standard

1*12V, 60W power adapter, 1*CD

package

Packing box size: 280*215*123mm
Gross weight: 2.1kg (including power supply), 1.75kg (excluding power supply)
Net weight: 1.5kg

Model

Description

CPU optional

QBOX-D2550

2GB/4GB DDR3 memory

2.5"320G/500G/1T notebook mechanical hard disk

16G/32G/64G/128G Solid State Drive

D2550 (1.86GHz, 10w power consumption)

        dual core four threads

QBOX-N2600

2GB/4GB DDR3 memory

2.5"320G/500G/1T notebook mechanical hard disk

16G/32G/64G/128G Solid State Drive

N2600 (1.6GHz, 3.5w power consumption)

       Dual-core four-threaded

QBOX-N2800

2GB/4GB DDR3 memory

2.5" 320G/500G/1T notebook mechanical hard disk

16G/32G/64G/128G solid state drive < /p>

N2800 (1.86GHz, 6.5w power consumption)

       Double-core four-thread < /span>

1*Host

1* User's Guide

product name

Specifications

Power Adapter

12V5A four cores

Notebook Hard Drive

320G/500G/1T

SSD Hard Drive

8G/16G/32G/64G/128G

WIFI module

Short/Long Card
